Acid Rain Technology Ripsaw - Stereo Super Saw Oscillator (Pre-Order)
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
- Unit price
- per
This item is a Pre-order and is not in stock. Pre-order availability and ETA is based on details provided by the manufacturer and are subject to change without notice. Payment is collected at the time when the order is placed.

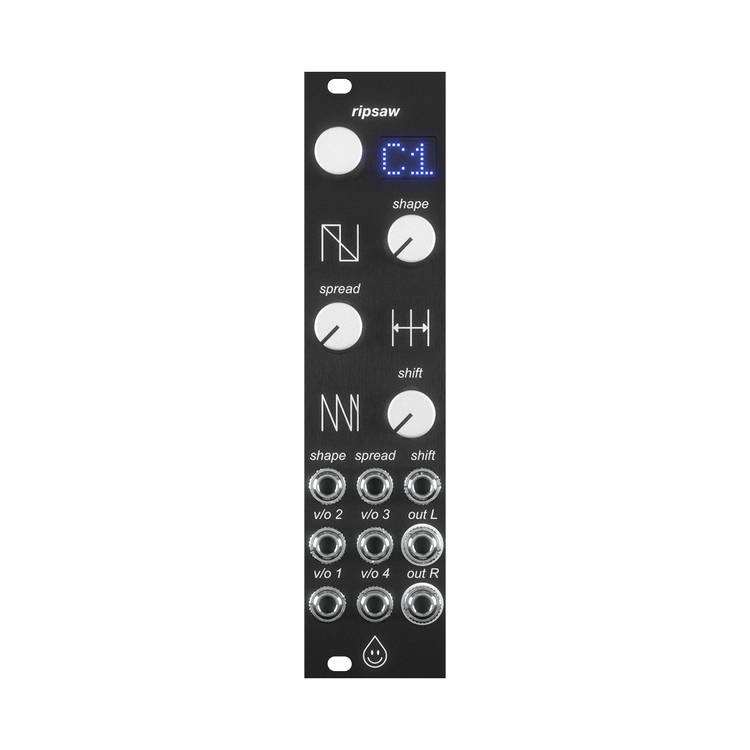

Ripsaw is a 6hp stereo super saw/square oscillator just like chainsaw with a few extra additions:
- 4x voices of 7 detunable saw/square waves to allow for more complex chords
- unique "display" built from 77 blue LEDs
- manual and CV control over wave shape and spread like chainsaw
- a new "shift" parameter that offsets the frequency of a second oscillator that hard syncs each waveform for a unique "supersync" sound
- waves panned across stereo outputs like chainsaw
- fine tune adjustment and optional onboard semitone quantization selectable on the encoder/display
Additionally, Ripsaw is the first firmware for our new 6hp hardware platform we're calling "HEX". We have another firmware in development as well that we also plan on showing at Superbooth if things come together! HEX firmwares will be oscillators, full voices and also sound processors. Users will be able to swap firmware quickly and easily (plug the module into a computer via USBc and drag a file onto it) free of charge in addition to each firmware being sold as a module with a unique panel.
Ripsaw is a 6hp stereo super saw/square oscillator just like chainsaw with a few extra additions:
- 4x voices of 7 detunable saw/square waves to allow for more complex chords
- unique "display" built from 77 blue LEDs
- manual and CV control over wave shape and spread like chainsaw
- a new "shift" parameter that offsets the frequency of a second oscillator that hard syncs each waveform for a unique "supersync" sound
- waves panned across stereo outputs like chainsaw
- fine tune adjustment and optional onboard semitone quantization selectable on the encoder/display
Additionally, Ripsaw is the first firmware for our new 6hp hardware platform we're calling "HEX". We have another firmware in development as well that we also plan on showing at Superbooth if things come together! HEX firmwares will be oscillators, full voices and also sound processors. Users will be able to swap firmware quickly and easily (plug the module into a computer via USBc and drag a file onto it) free of charge in addition to each firmware being sold as a module with a unique panel.
Width: 6HP
Max Depth: 25mm
Power: 42mA @+12V, 5mA @-12V, 0mA @+5V
